Technical parameters:
Power: 0.12 ~ 30KW
Torque: 92 ~ 6500 N.m
Transmission rate: 7.1 ~ 11200
Material: 20 CrMnTi / 40 Cr
Hardness: 58~62 HRC
H.S. Code: 8483409000
Technical parameters:
Power: 0.12 ~ 30KW
Torque: 92 ~ 6500 N.m
Transmission rate: 7.1 ~ 11200
Material: 20 CrMnTi / 40 Cr
Hardness: 58~62 HRC
H.S. Code: 8483409000
Overview:
S series helical worm gearboxes adopts the direct connection form of the motor, and the structure is a first-stage helical gear plus a first-stage worm gear drive. The output is shaft-mounted, with six basic installation forms. It can be rotated forward and backward. The helical gear adopts hard tooth surface, stable operation, large carrying capacity, and working environment temperature -10℃~40℃. Compared with similar products, this product has the characteristics of large speed range, compact structure and convenient installation.
Assembly form:

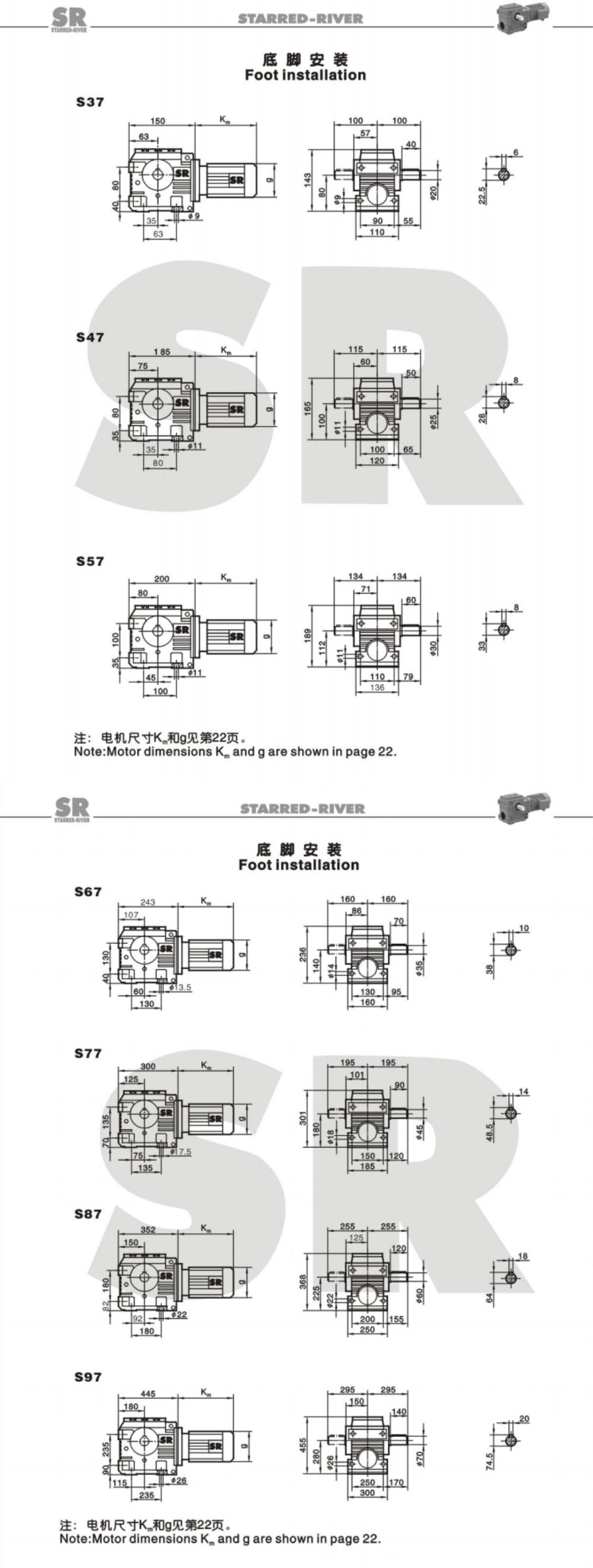

--Can be installed on foot-mounted , flanges and hollow shafts installation.
--Can be equipped with various motors or double shaft type
Model:
S37、S47、S57、S67、S77、S87、S97
SF37、SF47、SF57、SF67、SF77、SF87、SF97
SA37、SA47、SA57、SA67、SA77、SA87、SA97
SAF37、SAF47、SAF57、SAF67、SAF77、SAF87、SAF97
SAZ37、SAZ47、SAZ57、SAZ67、SAZ77、SAZ87、SAZ97
Application area:
It can be widely used in the deceleration mechanism of various machinery and equipment in metallurgy, mining, lifting, light industry, chemical industry, transportation, construction and so on.
Product picture:

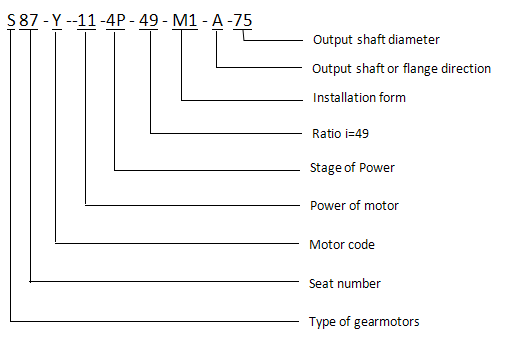

Order symbol:
Location: | China |
Business Type: | Manufacturer, Exporter |
Brands: | STARRED-RIVER |
Certificate: | WCS ISO9001 |
Terms of payment and delivery: | Contract shall prevail |
Minimum order quantity: | 1 Set |
Price: | Consultation |
Packing details: | Box |
Our factory:
Our certificates:
